Installation Instructions
Placement of VersaTile, Example Refrigeration

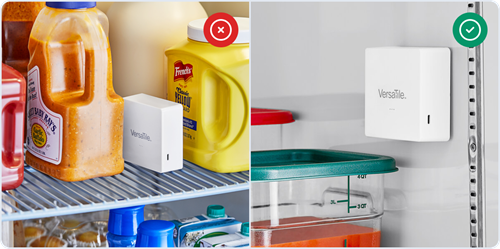

Figure 1: Install VersaTile as high as possible as food can block WiFi signals
- Follow the VersaHub add unit instructions (scan QR code).
- When asked to press the “setup” button, STOP.
- Place VersaTile in its intended location for installation (i.e., inside refrigerator).
- Press “setup” button (For refrigeration, close door afterwards).
- Proceed with setup on mobile device and follow VersaHub add unit install instructions.

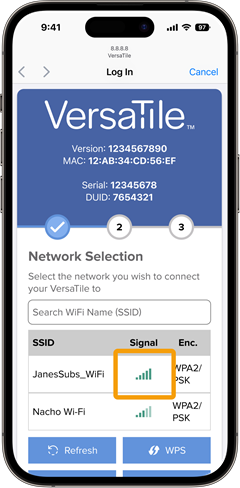

- IMPORANT: Once connected to “VersaTile” WiFi network, inspect the signal strength of your intended connection network.
- Signal strength of 4 Bars or greater is recommended.
- If below 4 bars, consider installing VersaTile on exterior of refrigeration with an add-on temperature.

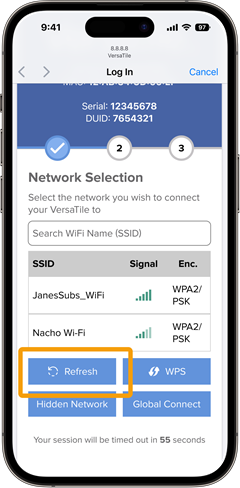

- Use “refresh” button to reload and verify signal strength (Figure 2).
- Listen for the 4x beeps that indicate success.
- Finish connection and proceed through add unit setup.
