178SSWT36FA
Avantco SS-WT-36F-HC 36" Two Door Stainless Steel ADA Height Worktop Freezer with 3 1/2" Backsplash
Features
-
2 1/2" casters make moving simple for easy cleaning and bring the unit to an ADA-compliant working h
-
Strong and sleek type 430 stainless steel exterior with 3 1/2" backsplash and type 304 stainless ste
-
Foamed-in-place polyurethane maintains temperatures from -8 to -1 degrees Fahrenheit
-

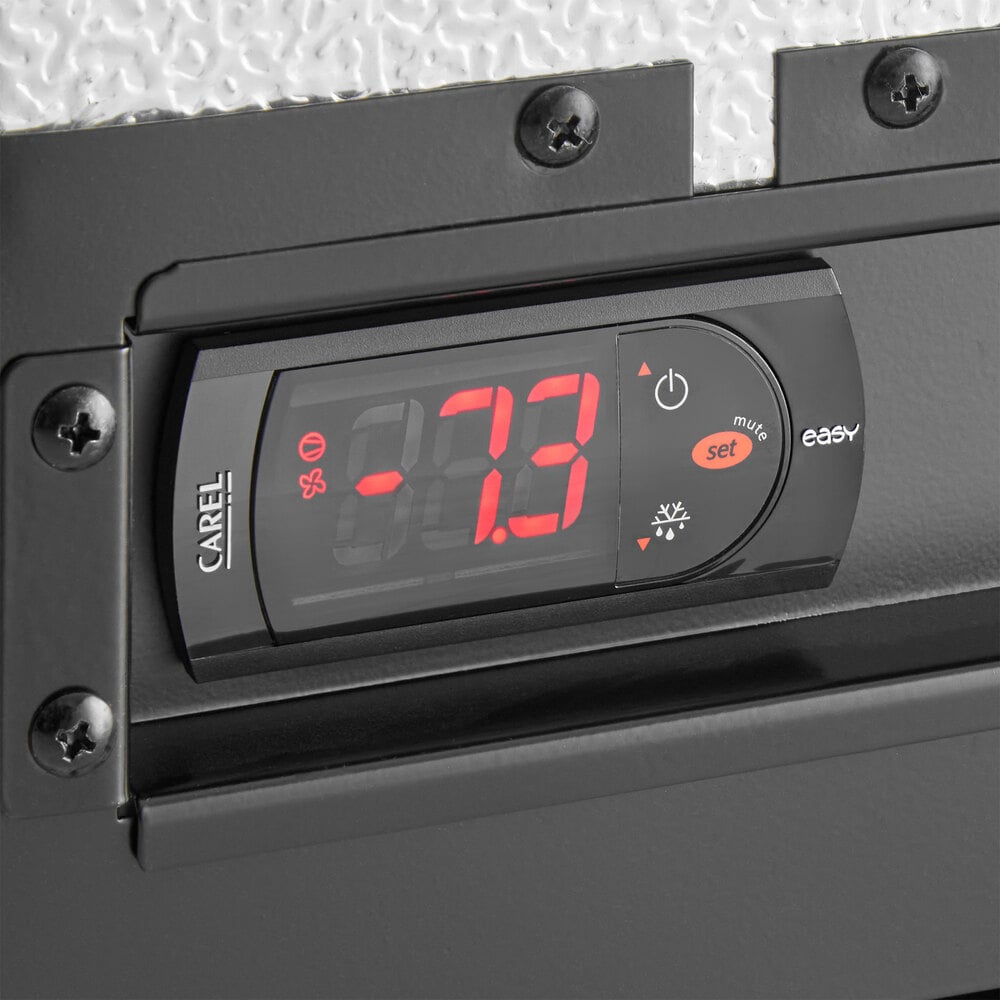

Easy-to-read digital temperature controller and auto-defrost function
-
115V; 1/2 hp
Certifications
-
ETL, US
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.
-
5-15P
This unit comes with a NEMA 5-15P plug.
-
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
-
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
Other Available Styles
How to Program a Carel PJEZ Controller on an Avantco Refrigerator
Learn how to use a Carel PJEZ controller on an Avantco refrigerator to set the low temperature limit.
Avantco: How to Clean Stainless Steel Refrigerators
Follow these tips for how to clean your Avantco stainless steel refrigerator.
Avantco: How to Replace Door Gaskets
Here’s how to change a door gasket on Avantco Refrigeration products.
Avantco Undercounter / Worktop Refrigerators & Freezers Overview
Easily store and prepare food with Avantco undercounter and worktop refrigerators and freezers.
Specifications
- Width 36.25 Inches
- Depth 29.5 Inches
- Height 37.125 Inches
- Power Cord Length 84 Inches
- Interior Width 33 Inches
- Interior Depth 22.875 Inches
- Interior Height 23.5 Inches
- Work Surface Height 33.625 Inches
- Amps 4.1 Amps
- Hertz 60 Hz
- Phase 1 Phase
- Voltage 115 Volts
- Wattage 275 Watts
- Access Type Doors
- Backsplash With Backsplash
- BTU (LBP) 1264 BTU
- Capacity 8.2 cu. ft.
- Compressor Location Rear Mounted
- Compressor Style Side / Rear Breathing
- Door Style Swing
- Door Type Solid
- Features ADA Compliant
- Features Removable Magnetic Door Gaskets
- Features With Backsplash
- Hinge Location Left
- Hinge Location Right
- Horsepower 1/2 hp
- Number of Doors 2 Doors
- Number of Shelves 2 Shelves
- Plug Type NEMA 5-15P
- Product Type Freezers
- Product Type Freezers & Dipping Cabinets
- Refrigerant Type R-290
- Starting Amps 12.3 Amps
- Starting Wattage 825 Watts
- Style ADA Height
- Temperature Range -1 Degrees F
- Temperature Range -8 Degrees F
- Top Capacity 318 lb.
Frequently Asked Questions
It should not be built into cabinetry. This unit requires 3” of clearance on all sides for proper ventilation.
No, they must be installed after delivery.
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
This product cannot be shipped to Canada.

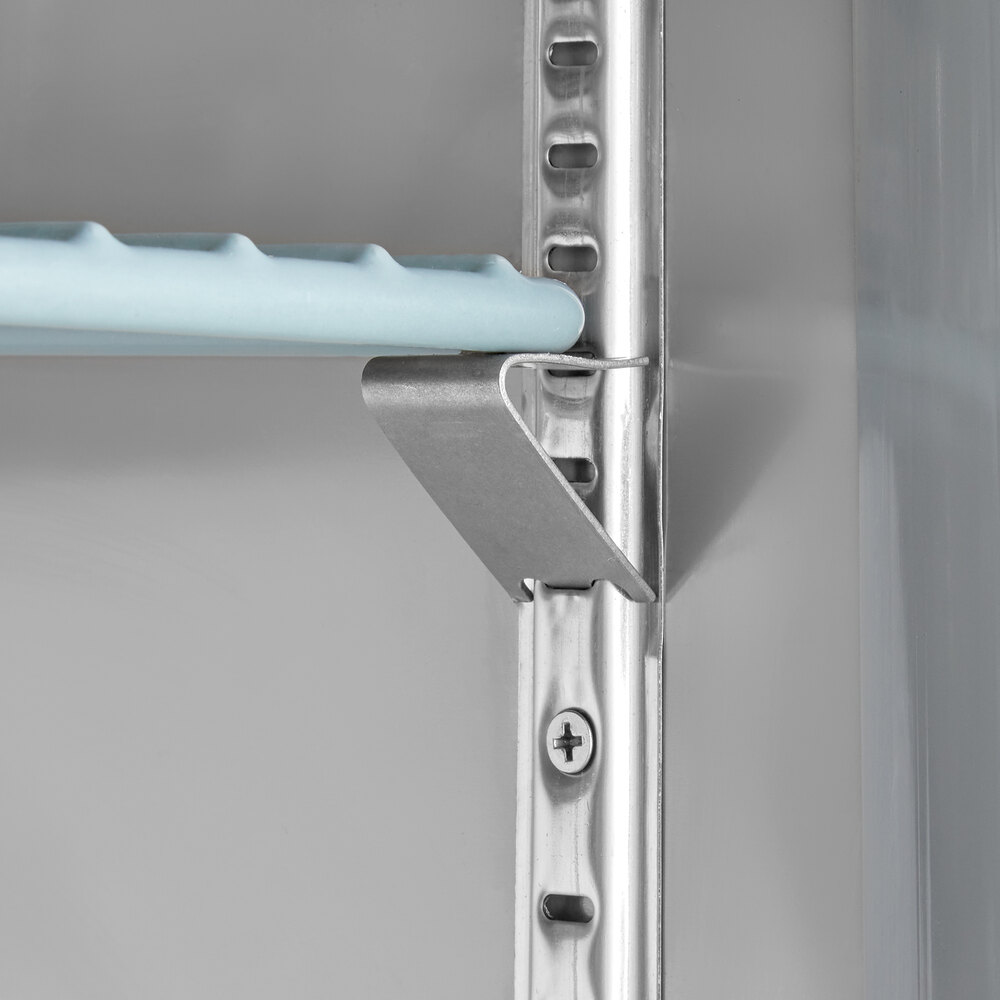

To promote proper air flow through your Avantco unit, please ensure that the wire ledges on the shelves are positioned toward the back of the unit. These ledges help keep enough space between your product and the back wall so that cold air can adequately circulate through the cabinet. Incorrectly installing the shelf ledges can restrict airflow, causing the temperature in the bottom of your unit to rise.
Many manufacturers offer their refrigeration equipment in several different height options to best meet your needs. Here's a breakdown of how we classify these different heights:
Counter Height: Work surface is more than 34" high; standard-height unit.
ADA Height: Work surface height is 34" or less; complies with ADA regulations.
Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.
If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
This unit’s refrigeration system is located in the lower rear of the cabinet, causing the step in its interior. The step may decrease the inner depth of the cabinet's lower interior versus what is listed as its overall interior depth, so please check the unit’s specs and diagrams to ensure it will accommodate your storage needs.
